Thermal Breakers

Thermal breakers protect circuits from excess current in a similar way to a fuse, however, they often feature a switch allowing them to be reset if tripped. Common types of thermal breakers include thermal magnetic circuit breakers and thermal automotive circuit breakers.

Types of Thermal Breakers

Thermal magnetic circuit breakers are devices that provide protection against overcurrent in circuits. Circuit breakers use an automatically operated electrical switch to disrupt the flow of current when an overload or short circuit is detected. Thermal magnetic circuit breakers do this using an electromagnet and bimetallic strips.

Circuit breakers provide more sophisticated protection against overcurrent than a simple fuse. Fuses simply burn out and have to be replaced, whereas circuit breakers just need to be reset.

Thermal automotive circuit breakers are devices used to break the flow of current in automotive circuits, in order to protect them against a fault such as overcurrent or short circuit.

The thermal aspect of this type of circuit breaker allows for smaller overcurrents over a longer period of time, but will quickly trip the circuit for larger overcurrents. This is useful in the case of motors, as there will be a small overcurrent each time the engine is switched on for a short length of time, which should not trip the circuit.

What are thermal magnetic circuit breakers used for?

Thermal magnetic circuit breakers are most often used in distribution boards. They make up part of the subsidiary circuits in the broader electrical supply system, protecting against overcurrent.

What are thermal automotive circuit breakers used for?

Thermal automotive circuit breakers are used to protect electrical networks in most types of vehicles, including cars, vans, buses, and boats.

Popular Searches

• Check Stock
• Sales Portal
• About E-T-A

Thermal Overcurrent Circuit Breakers

Typical applications.

Thermal circuit breakers (circuit protectors, resettable fuses, circuit breakers for equipment protection) are ideally suited to overload protection of motors, transformers, magnetic valves, on-board electrical systems and low voltage lines.

The trip time of thermal circuit breakers depends on the height and of the duration of the overload current and the ambient temperature. With higher current ratings, the bimetal or hot wire is heated up until the defined trip time is reached and the device ensures genuine physical isolation of the contacts.

Thermal circuit breaker, integral type, single pole

Thermal circuit breaker for pcb mounting, single pole

Thermal circuit breaker for snap-in mounting, single pole

Thermal circuit breaker for threadneck panel mounting, single pole

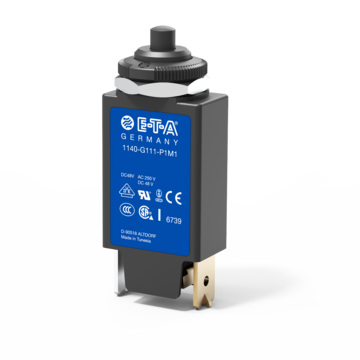

Thermal circuit breaker with manual release button, plug-in or snap in panel mounting

129-L11-H-KF

Thermal automotive circuit breaker with manual release, for base mounting

Push-push thermal switch/circuit breaker combination, single pole

Single pole thermal reset circuit breaker

Single pole thermal circuit breaker, integral type

Thermal circuit breaker for snap-in panel mounting, single pole

Thermal circuit breaker for threadneck panel mounting, double pole, one pole thermally protected

Thermal automotive circuit breaker with automatic reset function

Miniaturised thermal automotive circuit breaker with colour-coded manual release

Thermal circuit breaker, plug-in type, single pole, switching function optional

Thermal circuit breaker for snap-in panel mounting, rocker operated, fast acting

Miniaturised thermal circuit breaker for pcb mounting, fast acting

Miniaturised thermal circuit breaker for threadneck panel mounting, fast acting

Automotive thermal circuit breaker, colour-coded housing, standard fuseblock mounting

Automotive thermal circuit breaker with manual release option

Automotive thermal circuit breaker with automatic reset function

Single pole, thermal miniaturised circuit breaker designed for automotive applications

Single pole thermal reset circuit breaker in a miniaturised design intended for threadneck or snap-in mounting, dimensions: 32.0 x 27.0 x 13.6 mm.

3120-N, thermal circuit breaker, snap-in mounting, 1-pole, 2-pole

Thermal circuit breaker with rocker actuation, single, double or three pole

Thermal circuit breaker with rocker actuation, single pole, water splash protected (IP66)

Single pole three-position switch, water splash protected (IP66)

Thermal circuit breaker with push buttons, three pole

Thermal circuit breaker for threadneck panel mounting

Thermal circuit breaker for flange mounting and manual release option

Thermal circuit breaker with threadneck, push-push actuation

Thermal circuit breaker for threadneck panel mounting, with auxiliary contacts

Single pole bimetal operated motor protection control, surface mounting, autoreset

Interactive Virtual Sample Kit

E-T-A's new interactive sample case features circuit breakers, relays, and power distribution modules. With the click of your mouse you can:

• Spin products with 360° CAD product viewer
• Filter products by attributes
• View product datasheets
• Add samples to a bag to request physical samples

Build your custom sample kit today
